POLARIS PRO R ID1050-XDS Injector Dynamics Fuel Injectors 1050.34.14.14.4

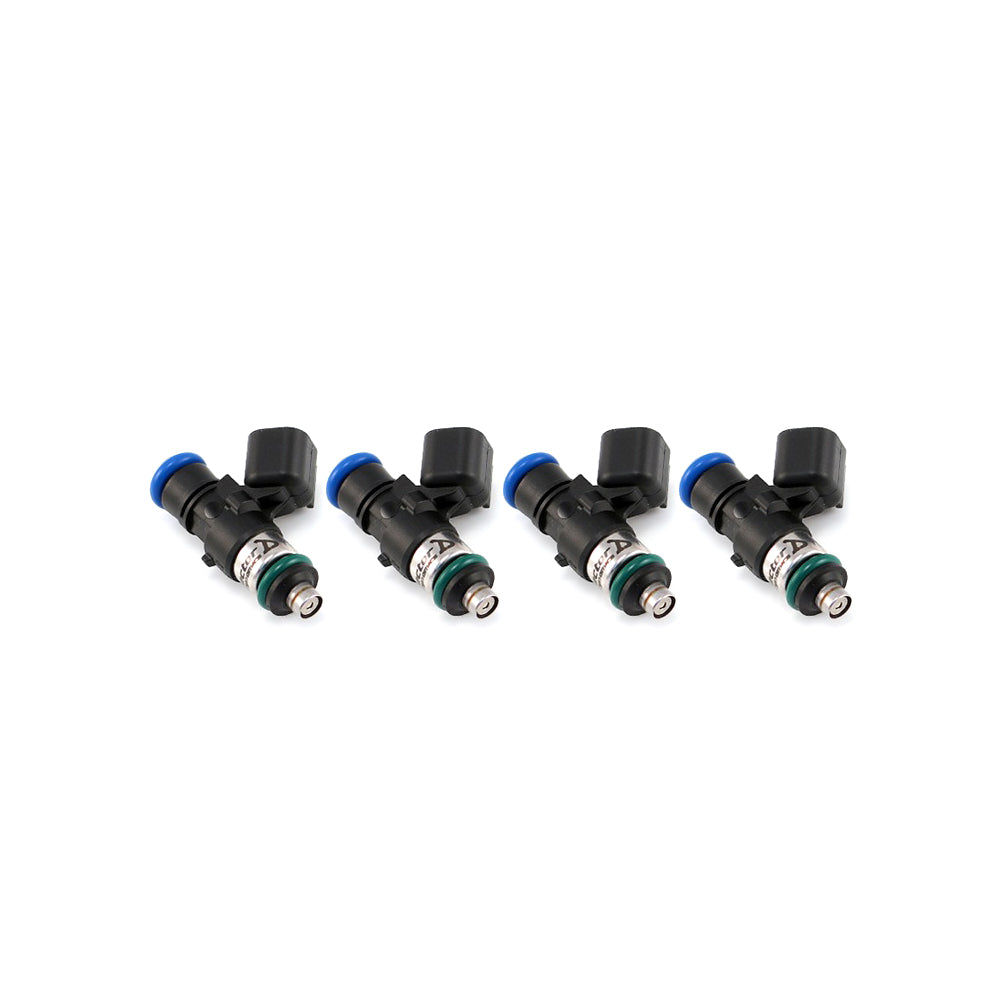

ID1050-XDS, for Polaris Pro R applications using OEM or Injector Dynamics Fuel Rail. Direct Replacement, no adaptors. Set of 4. (reuse OEM injector retainer clips if using OEM rail)

The ID1050-XDS is the evolution of the ID1050x.

The ID1050-XDS benefits from Dual Slope Matching, a method of matching the flow rate in both the linear, and nonlinear operating range, providing better cylinder-to-cylinder consistency at low pulse widths.

Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.

Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.

Stronger magnetic circuit offers stable operation up to 10 bar.

Replaceable inlet filter extends service life.

Base Specifications

Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)
Fuel Compatibility – Compatible With All Known Fuels
Electrical Connector – USCAR
